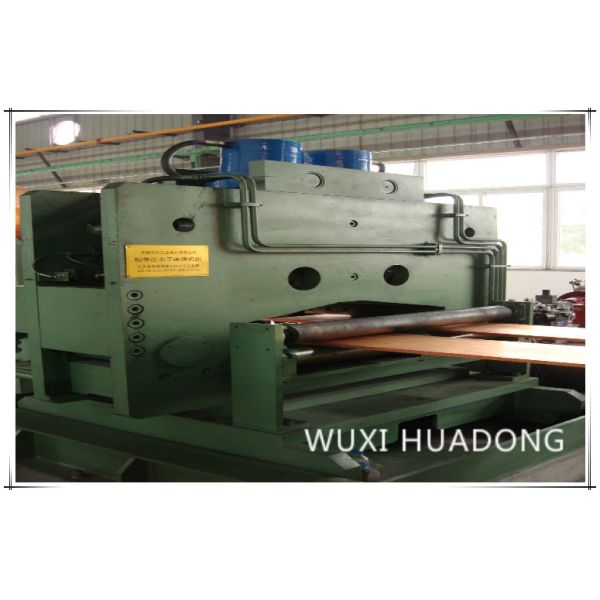

Alloy Copper Plate Strip Casting Machine Slab Continuous Two Strand
Ⅰ.SPECIFICATIONS
1. Types of casting specifications
* Production variety: copper base alloy (cupronickel) billet coils
2. Specification of finished-product coil
2.1 Number of billets: 2 strips
2.2 Billet width: 380mm-500mm
2.3 Billet thickness: 16- 20mm
2.4 Inside diameter of coil: minimum Φ 600- 800mm
2.5 Outside diameter of coil: maximum Φ1800mm
2.6 Maximum weight of coil: max: 6000kg
3. Guarantee value of billet thickness difference
3.1 Transverse thickness difference of billet: ＜0.75mm—0.3 (After mould modification)
3.2 Longitudinal thickness difference of billet: <0.3mm (After mould modification)
3.3 Average energy consumption for smelting by smelting furnace: 250-380kwh／t
3.4 Average energy consumption for temperature preservation by holding furnace: 50-80kwh/t
3.5 Maximum pushing and drawing force: 50KN
3.6 Pushing and drawing speed range: 1.5-70mm/ sec
3.7 Average maximum casting speed: 300mm／ min
3.8 Maximum shearing force of hydraulic shear: 600KN
3.9 Coiling speed of coiler: 750mm／min
Ⅱ. COPPER CONTINUOUS CASTING MACHINE PROCESS PARTS LIST
| No. |
Equipment Name |
Unit |
QTY |
| 1 |
Line frequency induction smelting furnace (including melting groove and lining building material) |
set |
1 |
| 2 |
Iron core, water jacket and coil of smelting furnace |
set |
1 |
| 3 |
Tundish |
set |
1 |
| 4 |
Line frequency induction holding furnace (including melting groove and lining building material) |
set |
1 |
| 5 |
Iron core, water jacket and coil of holding furnace |
set |
1 |
| 6 |
mould for lining building |
set |
1 |
| 7 |
crystallizer |
set |
2 |
| 8 |
graphite mould |
set |
1 |
| 9 |
Sealing steel mould of crystallizer |
set |
1 |
| 10 |
Dummy bar (made of stainless steel) |
set |
1 |
| 11 |
Dummy plate |
set |
1 |
| 12 |
Cooling water distribution device for crystallizer |
set |
1 |
| 13 |
Secondary cooling device |
set |
1 |
| 14 |
Withdrawal machine |
set |
1 |
| 15 |
Hydraulic follow-up shearing machine |
set |
1 |
| 16 |
Coreless coiler |
set |
2 |
| 17 |
Water-cooled cable for smelting furnace |
set |
1 |
| 18 |
Hydraulic system |
Complete set |
1 |
| 19 |
Electrical control system |
Complete set |
1 |
| 20 |
Regulating transformer (no-load, stepped) for smelting furnace |
set |
1 |
| 21 |
Regulating transformer (no-load, stepped) for holding furnace |
set |
1 |
| 22 |
Gas protection device |
set |
1 |
| 23 |
Surface temperature thermometer |
set |
1 |
| 24 |
Special tools for machine unit |
|
|
Ⅳ.MAJOR TECHNICAL PARAMETERS OF EQUIPMENT
| 1 |
Smelting furnace: |
| 1.1 |
Total capacity of furnace |
5.0T |
| 1.2 |
Effective capacity of furnace |
2.5T |
| 1.3 |
Furnace voltage |
380V |
| 1.4 |
Furnace power |
600KW |
| 1.5 |
Melting rate |
2t/h |
| 1.6 |
Power factor after compensation: |
0.95-1.0 |
| 1.7 |
Number of phases and connection mode of inductor: |
Single-phase series-connection
|
| 1.8 |
Rated capacity of transformer: |
900KVA water-cooled autotransformer (380V incoming-line, three-phase,
|
| 1.9 |
coil cooling mode: |
Water-cooling |
| 1.10 |
Cooling water consumption: |
5m3／h |
| 1.11 |
Maximum temperature of furnace: |
1500℃ |
| 2 |
Holding furnace section |
|
| 2.1 |
Effective capacity of furnace: |
4.0T |
| 2.2 |
Effective casting capacity: |
Less than 85 dB |
| 2.3 |
Rated voltage: |
380V |
| 2.4 |
Rated power : |
250KW |
| 2.5 |
Rated capacity of transformer: |
400KVA water-cooled autotransformer
(380V incoming-line, three-phase,
no-load stepped voltage-regulating).
|
| 2.6 |
Power factor after compensation: |
0.95-1.0 |
| 2.7 |
Temperature control precision: |
±8℃ |
| 2.8 |
Maximum temperature of furnace: |
1300℃ |
| 2.9 |
Coil cooling mode: |
Water-cooling
|
| 3 |
Mould |
|
| 3.1 |
width |
380- 500mm |
| 3.2 |
thickness |
16-20mm. |
| 3.3 |
Material |
1Cr18Ni9Ti stainless steel, lined with copper bush (made of T2 copper) |
| 4 |
Secondary cooling device |
|
| 4.1 |
Water consumption: |
3m ³／h |
| 4.2 |
Water pressure: |
0.2-0.3Mpa |
| 5 |
Withdrawal machine |
|
| 5.1 |
Maximum pushing and drawing force: |
50KN |
| 5.2 |
Speed: |
Speed: |
| 5.3 |
Minimum stroke range: |
0.1mm
|
| 5.4 |
Shortest standby time |
0.01S |
| 5.5 |
AC servo motor: |
Siemens motor (11KW) |
| 5.6 |
Rated rotation speed of motor: |
3000r/min |
| 5.7 |
Static torque: |
△Tw= 60K Mo (at 60) 70N-M |
| 6 |
Double-billet hydraulic upper shearing machine:
|
| 6.1 |
Shearing force: |
600KN |
| 6.2 |
shearing thickness: |
20mm |
| 6.3 |
Shearing width: |
500mm |
| 6.4 |
Shearing speed: |
0- 5mm/s
|
| 6.5 |
Shearing stroke: |
80mm |
| 6.6 |
Maximum follow-up stroke of shearing machine: |
200mm |
| 7 |
Coiler machine unit |
|
| 7.1 |
Power: |
5.5KW |
| 7.2 |
Rotational speed: |
1420r/min |
| 7.3 |
Coiler displacement stroke: |
800mm |
| 8 |
Hydraulic station |
|
| 8.1 |
Motor power of hydraulic station for smelting furnace and holding furnace:
|
2× 7.5KW |
| 8.2 |
Motor power of hydraulic station for withdrawal machine: |
2× 7.5KW |
| 8.3 |
Motor power of hydraulic pump for upper shearing machine: |
2× 11KW
|
| 8.4 |
Motor power of hydraulic pump for coiler: |
2× 7.5KW |
